Building a 2D top-down game in a 3D engine like Facepunch’s s&box requires bridging the gap between world space physics and 2D sprite rendering. In this guide, we’ll build a custom SpriteController component using C# and s&box's Scene system. You’ll learn how to transform camera-relative WASD input into smooth 8-way directional movement, map input vectors directly to 4-cardinal sprite animations, and handle collision smoothly without unwanted directional flips when bumping into walls.

1. Setting Up Component References & Properties

To make the controller flexible, we expose component references and movement variables to the s&box Inspector using the [Property] attribute.

How it Works:

Component References: Exposes CharacterController, SpriteRenderer, and CameraComponent so you can drag-and-drop them in the Scene Inspector.
Movement Variables: Exposes movement speeds and acceleration for real-time tweaking.
Automatic Fallbacks: OnStart() automatically acquires missing components on the same GameObject if they aren't manually assigned in the Inspector.

[Property, Group( "Components" )] public CharacterController Controller { get; set; }
[Property, Group( "Components" )] public SpriteRenderer SpriteRenderer { get; set; }
[Property, Group( "Components" )] public CameraComponent TargetCamera { get; set; }

[Property, Group( "Movement Settings" )] public float WalkSpeed { get; set; } = 150f;
[Property, Group( "Movement Settings" )] public float RunSpeed { get; set; } = 250f;
[Property, Group( "Movement Settings" )] public float Acceleration { get; set; } = 10f;

protected override void OnStart()
{
	// Auto-acquire components if missing
	Controller ??= Components.Get<CharacterController>();
	SpriteRenderer ??= Components.Get<SpriteRenderer>();
	TargetCamera ??= Scene.GetAllComponents<CameraComponent>().FirstOrDefault();

	// Load fallback sprite resource if unassigned
	if ( SpriteRenderer != null && SpriteRenderer.Sprite == null )
	{
		SpriteRenderer.Sprite = ResourceLibrary.Get<Sprite>( "sprites/[name].sprite" );
	}
}

Replace [name].sprite to your sprite name like "amiya.sprite"

2. Calculating Camera-Relative Direction (`CalculateWishDir`)

Raw WASD input assumes fixed world coordinates. To ensure movement aligns with where the player's camera is pointing, we project input vectors onto the camera's orientation.

How it Works

Reads Input.AnalogMove where X corresponds to W/S (Forward/Backward) and Y corresponds to A/D (Left/Right).
Projects the camera's Forward and Right vectors onto the horizontal ground plane by zeroing out the Z-axis (.WithZ( 0 ).Normal).
Scales the camera vectors by input and returns a normalized direction vector.

private Vector3 CalculateWishDir()
{
	Vector3 moveInput = Input.AnalogMove;
	Vector3 wishDir = Vector3.Zero;

	if ( TargetCamera != null )
	{
		// Flatten camera directions onto the horizontal XY plane
		Vector3 camForward = TargetCamera.WorldRotation.Forward.WithZ( 0 ).Normal;
		Vector3 camRight = TargetCamera.WorldRotation.Right.WithZ( 0 ).Normal;

		// Calculate world direction relative to camera facing angle
		wishDir = (camForward * moveInput.x) - (camRight * moveInput.y);
	}
	else
	{
		// Fallback for fixed 2D world projection
		wishDir = new Vector3( moveInput.x, -moveInput.y, 0f );
	}

	return wishDir.IsNearZeroLength ? Vector3.Zero : wishDir.Normal;
}

3. Applying Physics & Character Movement (`UpdateMovement`)

Once we know the intended direction (wishDir), we pass it to the s&box CharacterController along with acceleration and gravity calculations.

How it Works:

Checks if the player is holding the "Run" key to toggle between RunSpeed and WalkSpeed.
Uses Vector3.Lerp to smoothly ramp velocity based on Acceleration * Time.Delta.
Checks Controller.IsOnGround to apply Scene.PhysicsWorld.Gravity when airborne.
Executes Controller.Move() to perform bounding-box collision sweeps against map geometry.

private void UpdateMovement( Vector3 wishDir )
{
	if ( Controller == null ) return;

	// Determine target speed based on Sprint input
	float targetSpeed = Input.Down( "Run" ) ? RunSpeed : WalkSpeed;
	Vector3 targetVelocity = wishDir * targetSpeed;

	// Smoothly interpolate horizontal movement
	Vector3 currentVel = Controller.Velocity;
	Vector3 horizontalVel = new Vector3( currentVel.x, currentVel.y, 0 );
	horizontalVel = Vector3.Lerp( horizontalVel, targetVelocity, Time.Delta * Acceleration );

	// Apply gravity when falling
	float currentZ = currentVel.z;
	if ( !Controller.IsOnGround )
	{
		currentZ += Scene.PhysicsWorld.Gravity.z * Time.Delta;
	}
	else
	{
		currentZ = 0;
	}

	Controller.Velocity = horizontalVel.WithZ( currentZ );
	Controller.Move();
}

4. Mapping Input Vectors to Directional Facing (`UpdateFacingDirection`)

To determine which direction the 2D sprite should face (Up, Down, Left, Right), we analyze the components of the horizontal input vector.

How it Works

Filters out minor analog stick drift using a minimum threshold (LengthSquared < 0.001f).
Compares MathF.Abs(x) against MathF.Abs(y) to determine whether the movement is primarily vertical or horizontal.
Updates currentDirection enum to store the character's facing orientation even after stopping.

private enum Direction { Down, Up, Left, Right }
private Direction currentDirection = Direction.Down;

private void UpdateFacingDirection( Vector3 inputVector )
{
	if ( inputVector.LengthSquared < 0.001f ) return;

	// Dominant Vertical vs Horizontal check
	if ( MathF.Abs( inputVector.x ) > MathF.Abs( inputVector.y ) )
	{
		currentDirection = inputVector.x > 0 ? Direction.Up : Direction.Down;
	}
	else
	{
		currentDirection = inputVector.y < 0 ? Direction.Left : Direction.Right;
	}
}

5. Animation State Transitions & Playback Safeguards (`UpdateSpriteAnimation`)

We trigger animations based on intended player input (wishDir) rather than physical velocity. This prevents the character sprite from rapidly flipping or resetting into an idle animation while running continuously into walls.

How it Works

Checks if wishDir contains intentional input.
Formats string sequence names matching your .sprite asset conventions (e.g., WalkUp, RunLeft, IdleDown).
Uses ChangeAnimation() to track state changes and ensure SpriteRenderer.PlayAnimation() is only invoked when changing sequences, preventing animation frame resets on every tick.

private string activeSequence = string.Empty;

private void UpdateSpriteAnimation( Vector3 wishDir )
{
	if ( SpriteRenderer == null || SpriteRenderer.Sprite == null ) return;

	bool isAttemptingToMove = !wishDir.IsNearZeroLength;
	bool isSprinting = Input.Down( "Run" );

	string targetSequence;

	if ( isAttemptingToMove )
	{
		UpdateFacingDirection( wishDir );
		string action = isSprinting ? "Run" : "Walk";
		targetSequence = $"{action}{currentDirection}";
	}
	else
	{
		targetSequence = $"Idle{currentDirection}";
	}

	ChangeAnimation( targetSequence );
}

private void ChangeAnimation( string sequenceName )
{
	// Guard clause: avoid re-starting sequence if already playing
	if ( activeSequence == sequenceName ) return;

	activeSequence = sequenceName;
	SpriteRenderer.PlayAnimation( sequenceName );
}

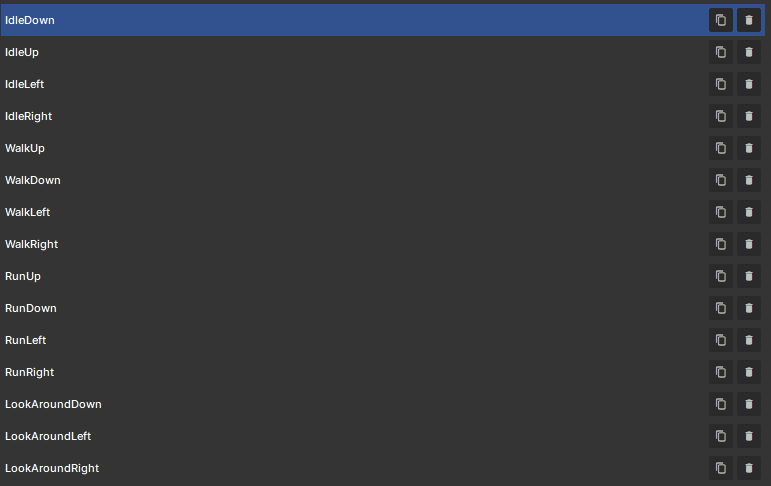

This will add "Up, Down, Left, Right" in your animation names. The image below shows the animation names of the sprite. If the player is facing left, it will do the "Idle" and add "Left" which becomes "IdleLeft" and will detect the "IdleLeft" animation that was on the sprite.

Conclusion:

The SpriteController implementation for s&box provides a foundation for top-down 2D movement and directional sprite animation state management.

Key Technical Takeaways

Camera-Relative Movement: By projecting Input.AnalogMove onto the camera's ground-plane directional vectors (Forward and Right with zeroed-out Z values), movement directions align with player perspective.
Input-Driven State Machine: Animation states derive directly from intended player input (wishDir) rather than physical velocity (Controller.Velocity). This prevents directional flickering and false-idle states when pushing into solid physics geometry.
Performance Safeguards: Guarding SpriteRenderer.PlayAnimation() behind active sequence tracking (activeSequence == sequenceName) ensures frame progression isn't reset on every update tick.

Full Code:

using Sandbox;
using System;

/// <summary>
/// Handles 2D sprite movement, top-down camera projection, direction mapping,
/// and automated state animation transitions for an sandbox character.
/// </summary>
public sealed class SpriteController : Component
{
    // =========================================================================
    // COMPONENT REFERENCES & PROPERTIES
    // =========================================================================

    [Property, Group( "Components" )] public CharacterController Controller { get; set; }
    [Property, Group( "Components" )] public SpriteRenderer SpriteRenderer { get; set; }
    [Property, Group( "Components" )] public CameraComponent TargetCamera { get; set; }

    [Property, Group( "Movement Settings" )] public float WalkSpeed { get; set; } = 150f;
    [Property, Group( "Movement Settings" )] public float RunSpeed { get; set; } = 250f;
    [Property, Group( "Movement Settings" )] public float Acceleration { get; set; } = 10f;

    // Path to the primary .sprite asset containing sequences (WalkUp, IdleDown, etc.)
    private const string SpriteResourcePath = "sprites/[name].sprite";

    // Enum matching the cardinal direction suffix used in sprite animation sequences
    private enum Direction { Down, Up, Left, Right }
    private Direction currentDirection = Direction.Down;

    // Animation state tracking
    private string activeSequence = string.Empty;

    // Expose current character velocity for external debug/HUD scripts
    public Vector3 Velocity => Controller?.Velocity ?? Vector3.Zero;

    // =========================================================================
    // INITIALIZATION
    // =========================================================================

    protected override void OnStart()
    {
        // Automatically acquire necessary components on the same GameObject if unassigned in Inspector
        Controller ??= Components.Get<CharacterController>();
        SpriteRenderer ??= Components.Get<SpriteRenderer>();
        TargetCamera ??= Scene.GetAllComponents<CameraComponent>().FirstOrDefault();

        // Load default sprite resource if none is currently assigned
        if ( SpriteRenderer != null && SpriteRenderer.Sprite == null )
        {
            SpriteRenderer.Sprite = ResourceLibrary.Get<Sprite>( SpriteResourcePath );
        }
    }

    // =========================================================================
    // ENGINE UPDATE LOOP
    // =========================================================================

    protected override void OnUpdate()
    {
        // 1. Calculate the player's intended direction in world/camera space
        Vector3 wishDir = CalculateWishDir();

        // 2. Apply movement physics to the CharacterController
        UpdateMovement( wishDir );

        // 3. Update active animation sequence based on input and facing direction
        UpdateSpriteAnimation( wishDir );
    }

    // =========================================================================
    // MOVEMENT CALCULATIONS
    // =========================================================================

    /// <summary>
    /// Translates raw WASD/stick input into a normalized world-space vector relative to camera rotation.
    /// </summary>
    private Vector3 CalculateWishDir()
    {
        // Input.AnalogMove: X = W/S (Forward/Back), Y = A/D (Left/Right)
        Vector3 moveInput = Input.AnalogMove;
        Vector3 wishDir = Vector3.Zero;

        if ( TargetCamera != null )
        {
            // Project camera directions onto the horizontal XY ground plane (ignoring Z elevation)
            Vector3 camForward = TargetCamera.WorldRotation.Forward.WithZ( 0 ).Normal;
            Vector3 camRight = TargetCamera.WorldRotation.Right.WithZ( 0 ).Normal;

            // Construct movement relative to camera orientation
            wishDir = (camForward * moveInput.x) - (camRight * moveInput.y);
        }
        else
        {
            // Direct world-space fallback if no camera component is linked
            wishDir = new Vector3( moveInput.x, -moveInput.y, 0f );
        }

        // Return zero vector or normalized vector to ensure consistent movement speed diagonally
        return wishDir.IsNearZeroLength ? Vector3.Zero : wishDir.Normal;
    }

    /// <summary>
    /// Applies velocity, acceleration, and gravity to the s&amp;box CharacterController.
    /// </summary>
    private void UpdateMovement( Vector3 wishDir )
    {
        if ( Controller == null ) return;

        // Select speed based on sprint key ("Run" action)
        float targetSpeed = Input.Down( "Run" ) ? RunSpeed : WalkSpeed;
        Vector3 targetVelocity = wishDir * targetSpeed;

        // Smoothly interpolate horizontal movement velocity
        Vector3 currentVel = Controller.Velocity;
        Vector3 horizontalVel = new Vector3( currentVel.x, currentVel.y, 0 );
        horizontalVel = Vector3.Lerp( horizontalVel, targetVelocity, Time.Delta * Acceleration );

        // Apply gravity step when airborne
        float currentZ = currentVel.z;
        if ( !Controller.IsOnGround )
        {
            currentZ += Scene.PhysicsWorld.Gravity.z * Time.Delta;
        }
        else
        {
            currentZ = 0;
        }

        // Update physics velocity and execute CharacterController movement collision checks
        Controller.Velocity = horizontalVel.WithZ( currentZ );
        Controller.Move();
    }

    // =========================================================================
    // SPRITE ANIMATION STATE MACHINE
    // =========================================================================

    /// <summary>
    /// Selects and plays animation sequences based on intentional input (wishDir) rather than physical velocity.
    /// This prevents sprite direction flipping when pushing into wall collisions.
    /// </summary>
    private void UpdateSpriteAnimation( Vector3 wishDir )
    {
        if ( SpriteRenderer == null ) return;

        // Fallback check: ensure sprite asset is valid
        if ( SpriteRenderer.Sprite == null )
        {
            SpriteRenderer.Sprite = ResourceLibrary.Get<Sprite>( SpriteResourcePath );
            if ( SpriteRenderer.Sprite == null ) return;
        }

        // Check if player intends to move (prevents wall collision false-idles)
        bool isAttemptingToMove = !wishDir.IsNearZeroLength;
        bool isSprinting = Input.Down( "Run" );

        string targetSequence;

        if ( isAttemptingToMove )
        {
            // Determine cardinal direction using raw input vector
            UpdateFacingDirection( wishDir );

            string action = isSprinting ? "Run" : "Walk";
            targetSequence = $"{action}{currentDirection}";
        }
        else
        {
            // Standstill state: Play simple Idle animation for the current facing direction
            targetSequence = $"Idle{currentDirection}";
        }

        // Trigger sequence state change
        ChangeAnimation( targetSequence );
    }

    /// <summary>
    /// Evaluates input direction against camera projection axes to update cardinal facing direction.
    /// </summary>
    private void UpdateFacingDirection( Vector3 inputVector )
    {
        // 1. Ignore negligible input/stick drift to prevent unintentional direction flips
        if ( inputVector.LengthSquared < 0.001f ) return;

        // 2. Compare absolute X (Forward/Up) vs absolute Y (Lateral/Side) movement
        if ( MathF.Abs( inputVector.x ) > MathF.Abs( inputVector.y ) )
        {
            // +X = Moving Up/Forward, -X = Moving Down/Backward
            currentDirection = inputVector.x > 0 ? Direction.Up : Direction.Down;
        }
        else
        {
            // In camera space: -Y = Moving Left, +Y = Moving Right
            currentDirection = inputVector.y < 0 ? Direction.Left : Direction.Right;
        }
    }

    /// <summary>
    /// Safely calls SpriteRenderer.PlayAnimation only when switching to a NEW sequence name.
    /// Prevents resetting frame progression on every tick.
    /// </summary>
    private void ChangeAnimation( string sequenceName )
    {
        if ( activeSequence == sequenceName ) return;

        activeSequence = sequenceName;
        SpriteRenderer.PlayAnimation( sequenceName );
    }
}

Creating a Sprite Controller in s&box

1. Setting Up Component References & Properties

How it Works:

2. Calculating Camera-Relative Direction (CalculateWishDir)

How it Works

3. Applying Physics & Character Movement (UpdateMovement)

How it Works:

4. Mapping Input Vectors to Directional Facing (UpdateFacingDirection)

How it Works

5. Animation State Transitions & Playback Safeguards (UpdateSpriteAnimation)

How it Works

Conclusion:

Key Technical Takeaways

Full Code:

2. Calculating Camera-Relative Direction (`CalculateWishDir`)

3. Applying Physics & Character Movement (`UpdateMovement`)

4. Mapping Input Vectors to Directional Facing (`UpdateFacingDirection`)

5. Animation State Transitions & Playback Safeguards (`UpdateSpriteAnimation`)
