Layering Clothing

Make and test clothing against the Human model. The older illustrations and recordings below show the retired Citizen model; they illustrate layering principles, but use the Human assets and paths described in the text.

Layering of Shirts, Jackets, Trousers, Shoes and Gloves

In S&box, we want a library of clothing that all fit together, resulting in hundreds, thousands of outfit combinations.

Layering clothing system

If you're making a clothing piece, you'll need to consider what fits under or over it.


Simple Breakdown

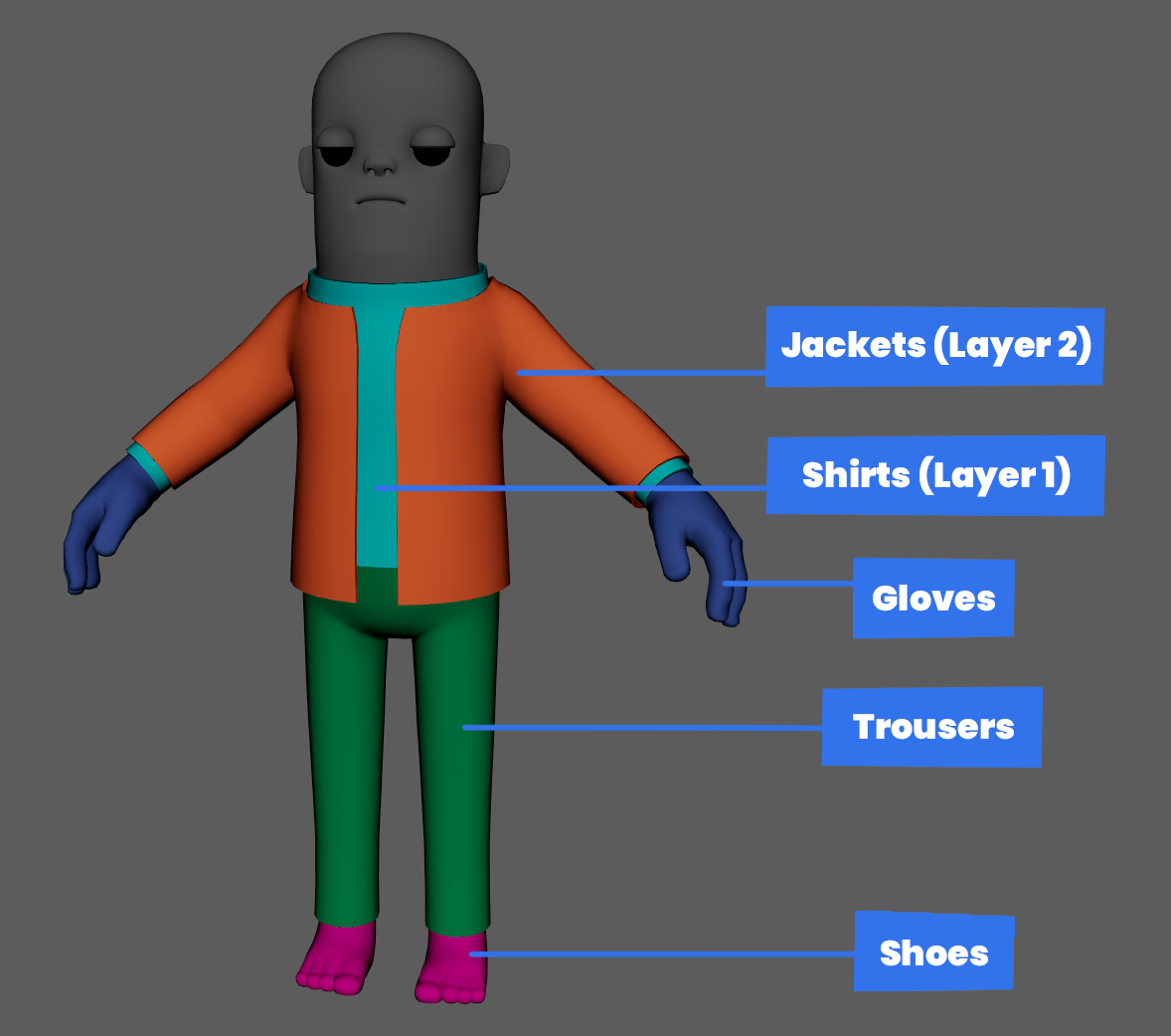

  • A 2 layer system for the torso, shirts (layer 1) and jackets / vests / etc (layer 2).

    \

  • Trousers are always tucked underneath the shirts.

    \

  • Shoes are always tucked underneath trousers.

    \

  • Gloves can be above or under shirts (layer 1) but never over / clipping into jackets (layer 2).

    \

  • If you're making an asset like a jumpsuit, that fills both the torso (layer 1) and the trousers area, this is fine. Though you will still need to make sure it fits underneath jackets (layer 2).

  • Full outfits are an exception to the rule, since they won't be fitting under or over any other clothing.

  • If you are making a coat / vest / armour asset that doesn't show any of layer 1, for example a zipless Hoodie, you won't need to worry about it following the layering rule.


Checking your Asset

A great way of making sure your clothing is fitting with the existing clothing, In your S&box project, place your clothing in a scene and add other existing clothing to check for clipping issues.

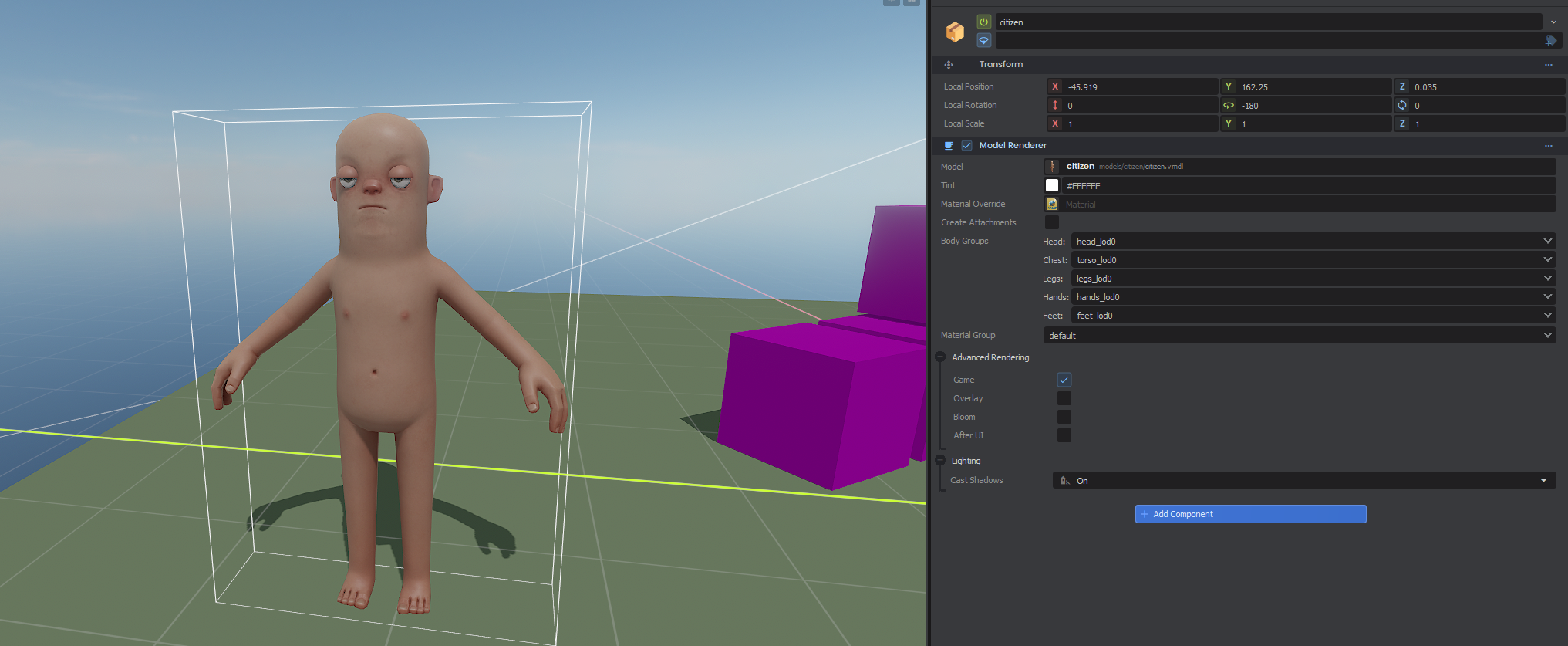

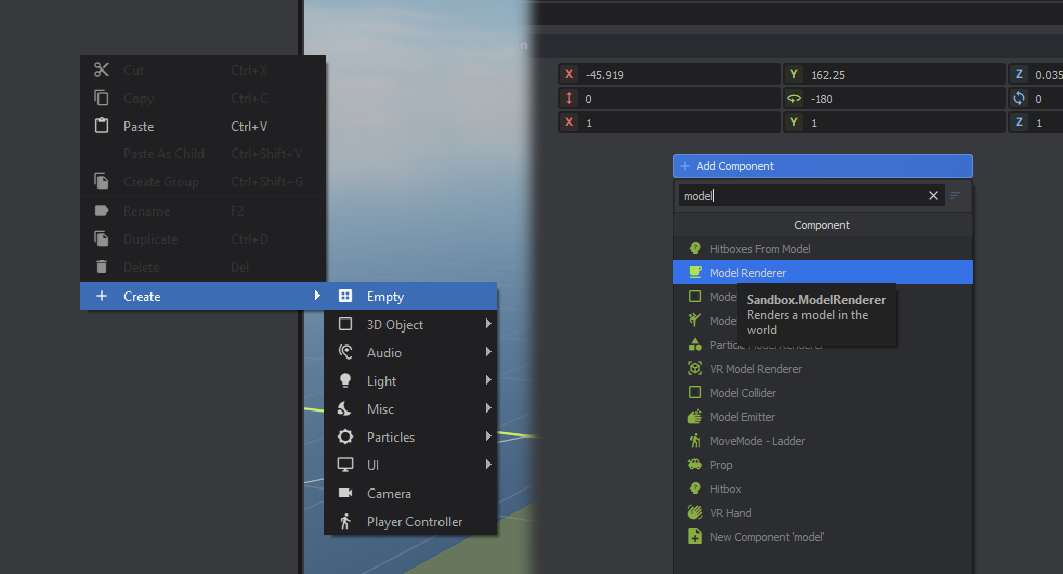

Right click in your 'Hierarchy', add an empty asset. Clicking on this new asset, we can 'Add Component' in the Inspector. Type and click in Model Renderer.

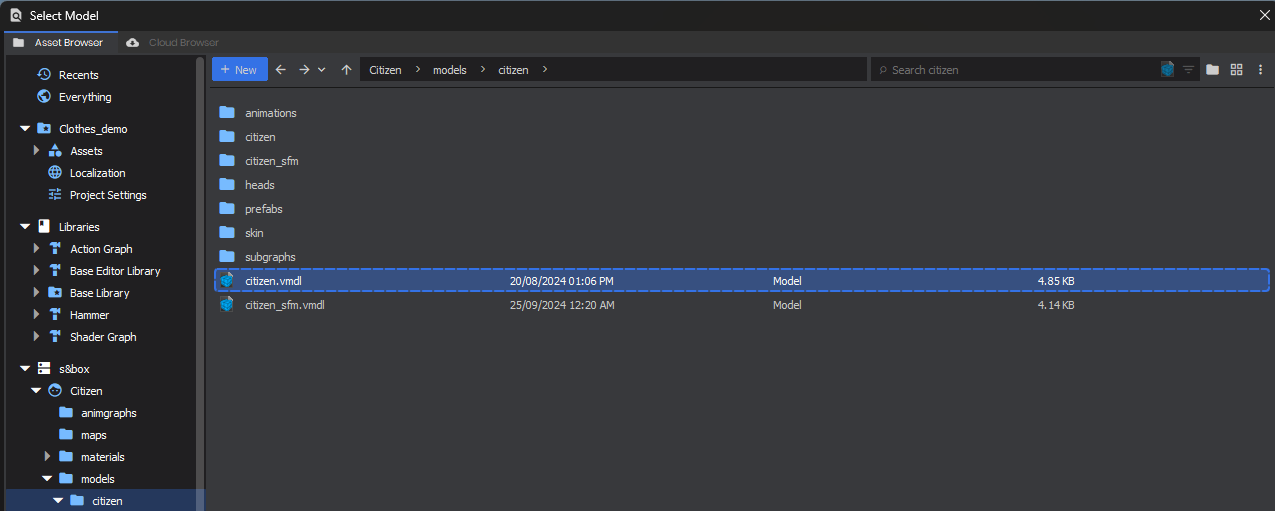

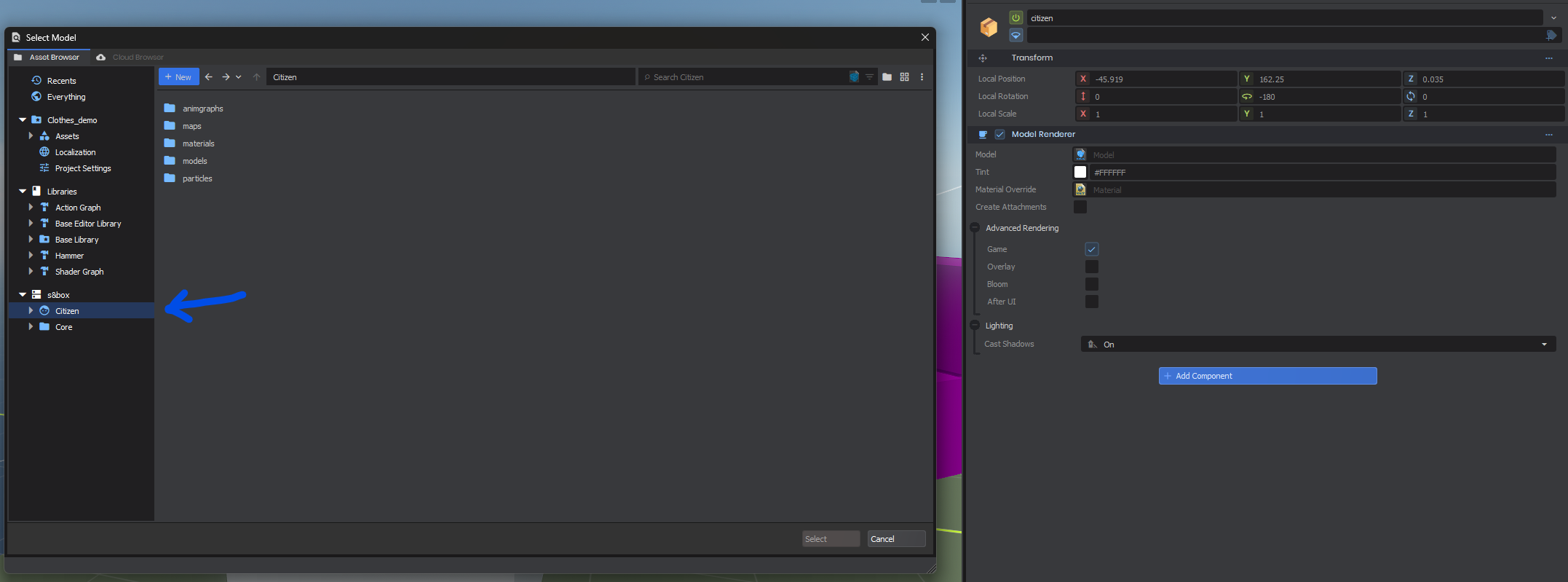

Click on the 'Model' input to open the asset picker. Enable Show Base Content to find the supplied Human model.

Choose models/citizen_human/human.vmdl. Now we have the Human in our scene to start dressing and testing our clothing.

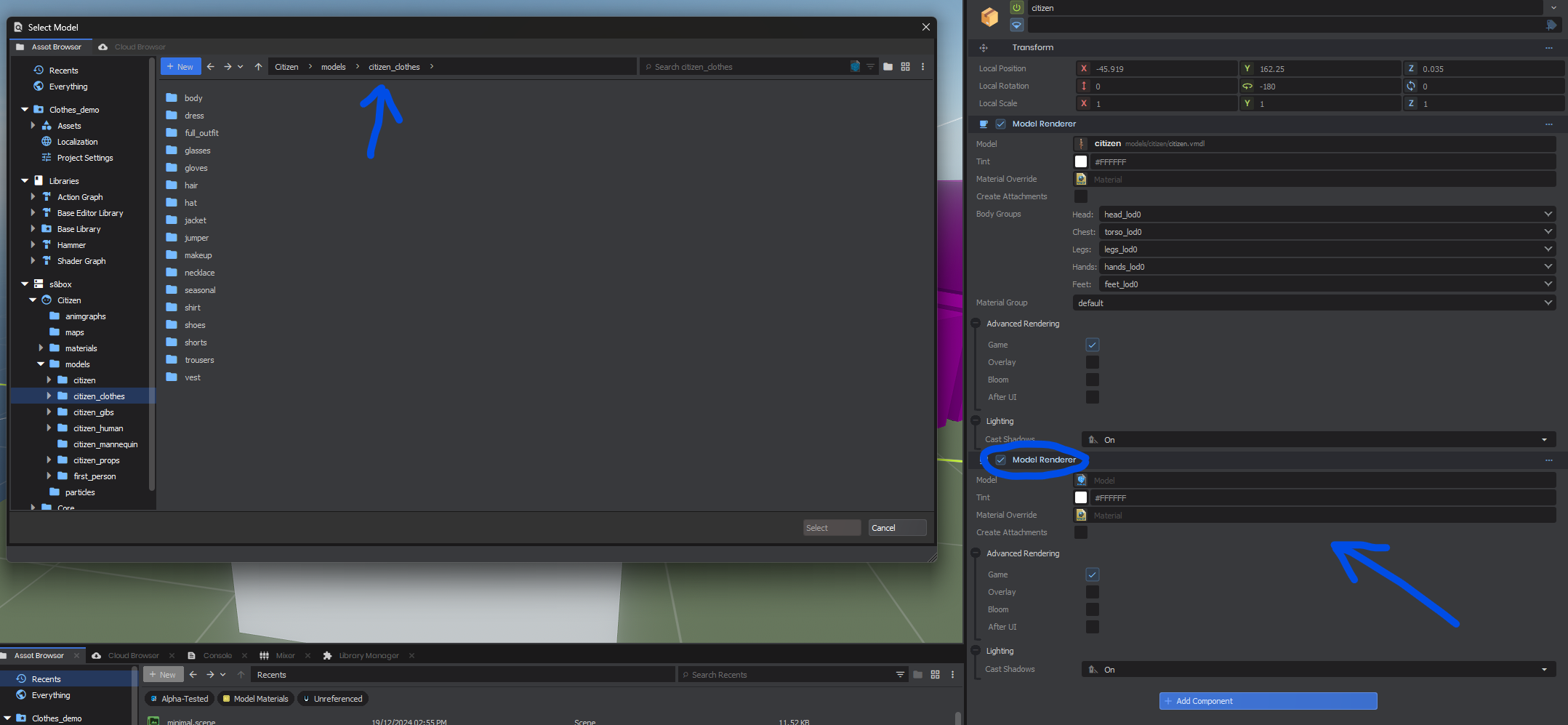

Now we can start adding clothing to test. The supplied clothing is under citizen\assets\models\citizen_clothes. Use the VMDLs assigned to each clothing definition's Model or Female Model field so you are comparing the correct fits.

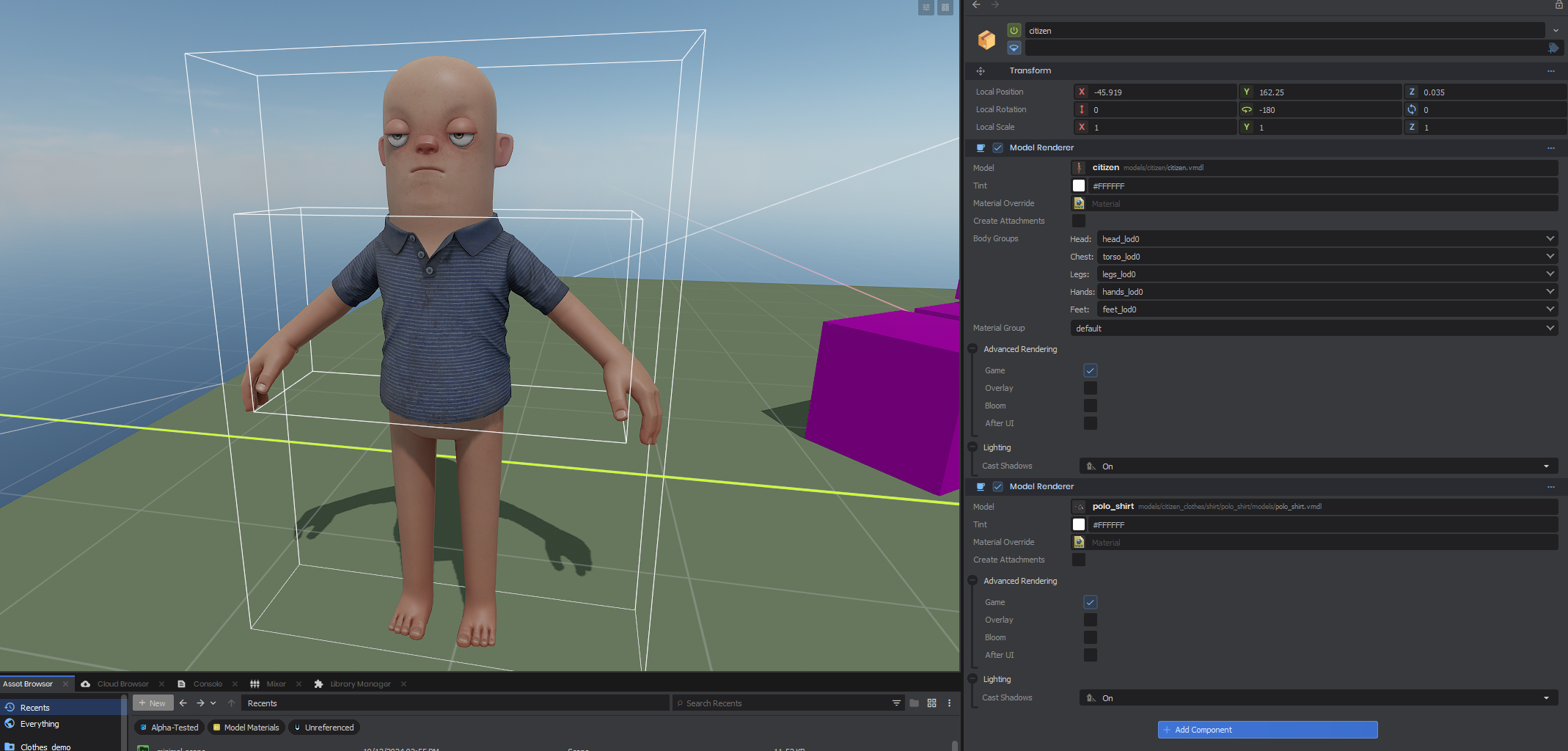

In this example I will be testing the Polo Shirt, for any clipping issues. Which should sit under all jackets / vests / armour, etc.

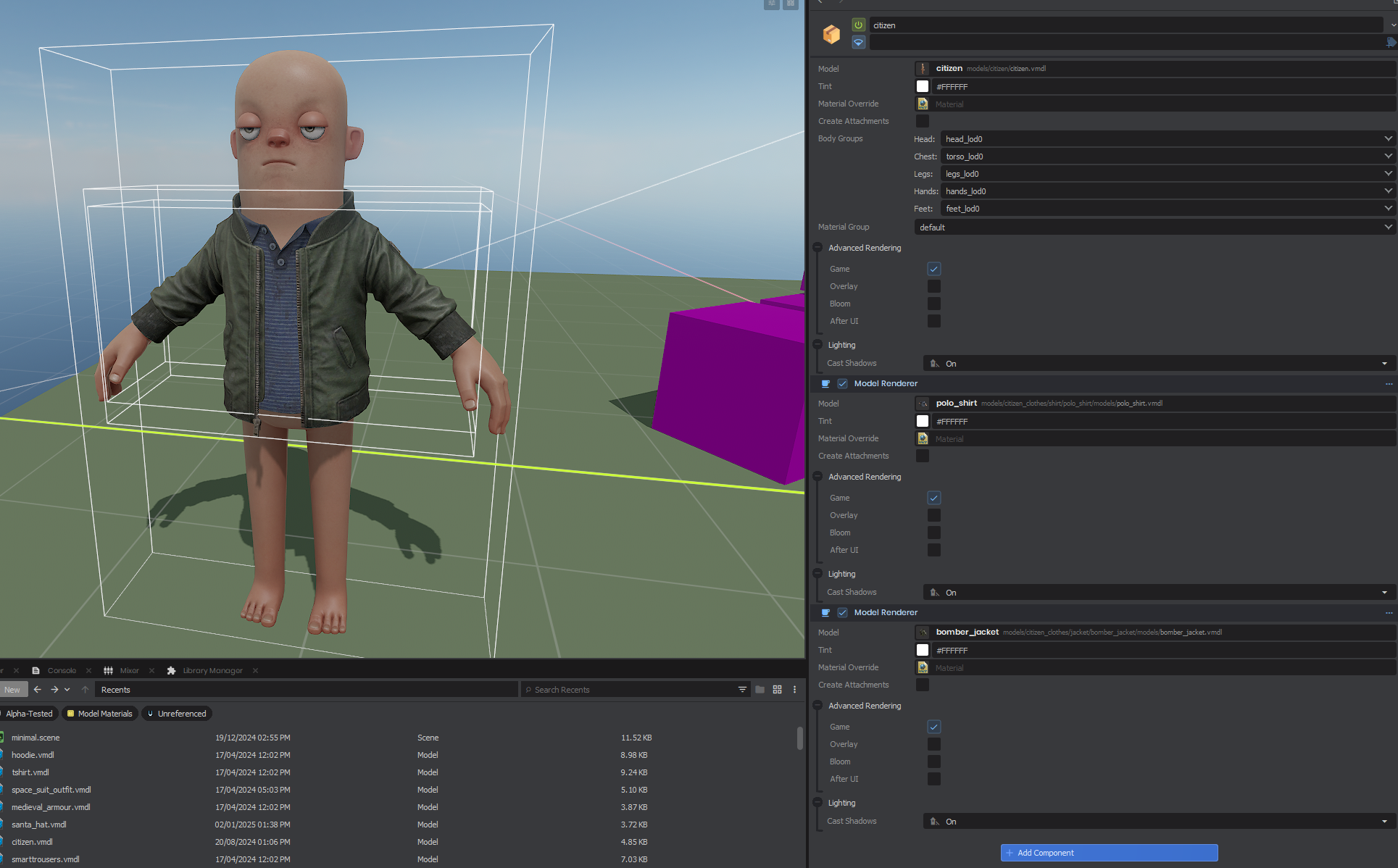

Add another component and add a layer 2 clothing asset. In this example I'm adding the Bomber jacket.

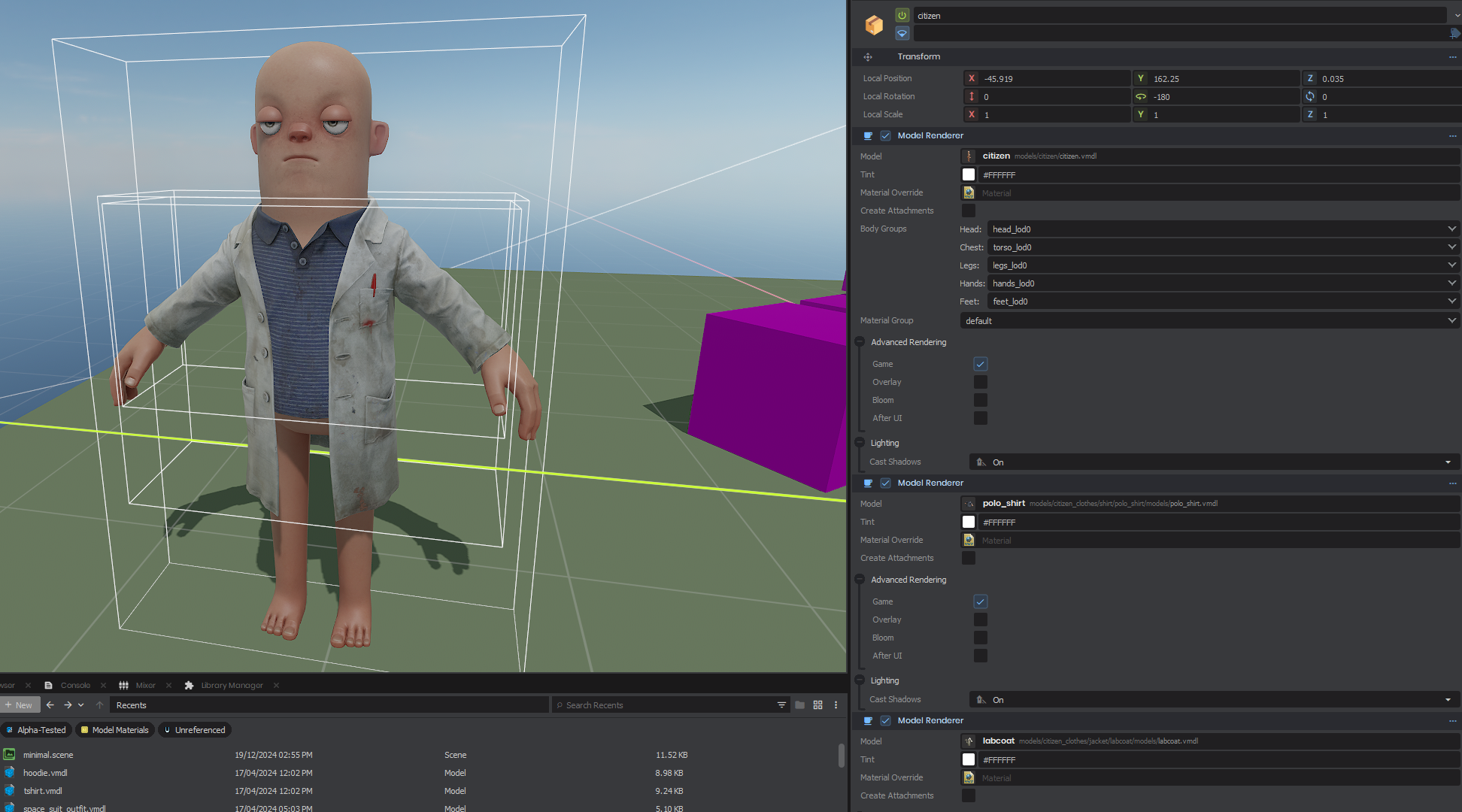

I can switch out the model input from the Bomber Jacket and try on other jackets.

Try out a few jackets till you find any clipping with your shirt, or until you feel confident there is no obvious clipping.


Including Visible Skin 👕🔪

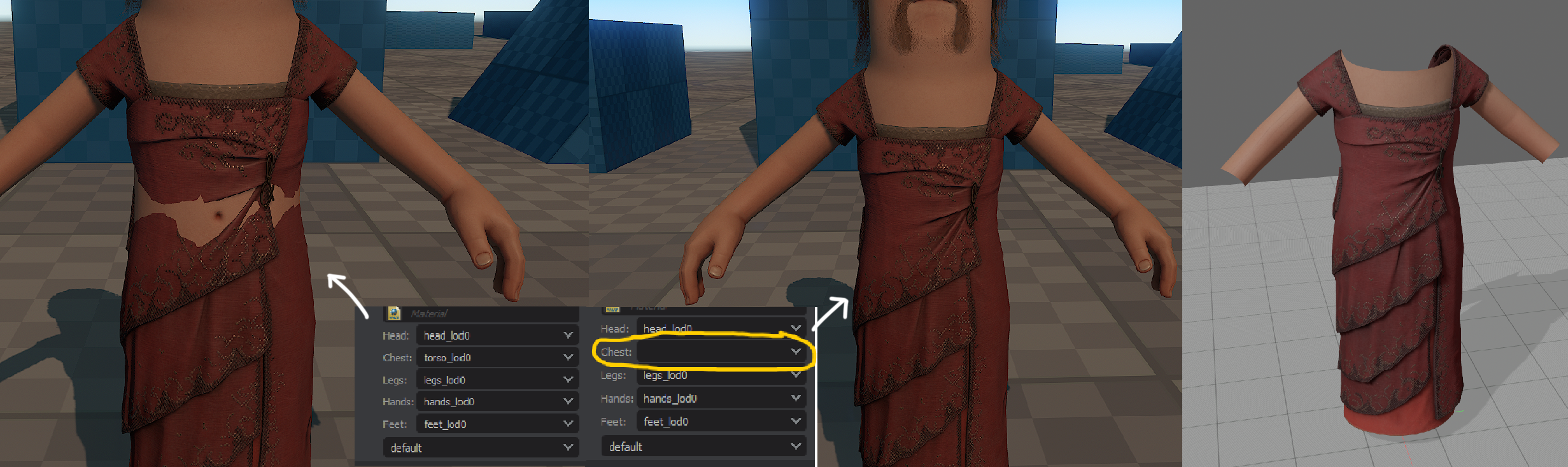

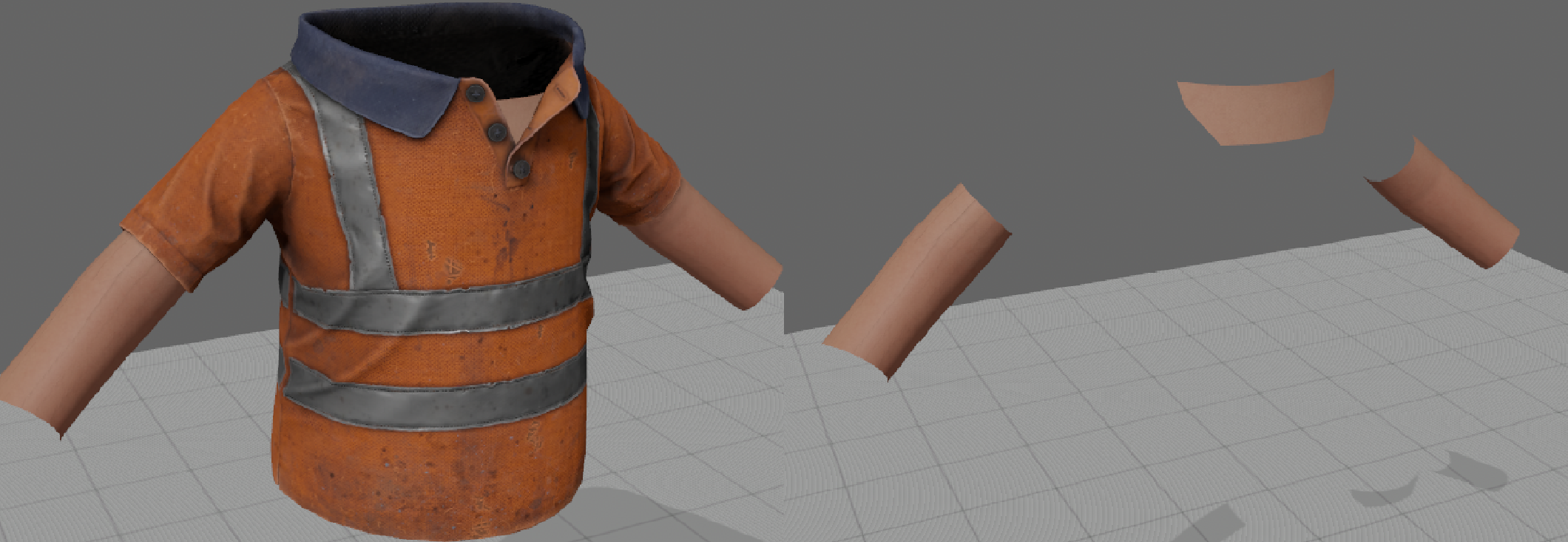

For layer 1 clothing that replaces a bodygroup, include the skin that should remain visible as part of your clothing model. Extract the needed geometry from citizen_human_male_REF.fbx or citizen_human_female_REF.fbx, matching the body your clothing is fitted to.

This is useful for assets that change the silhouette of the Human body: hide the covered bodygroup and replace the exposed skin with the cut-out geometry in your clothing model. Check both body fits so the skin meets the clothing without gaps.


Gloves Layering 🥊

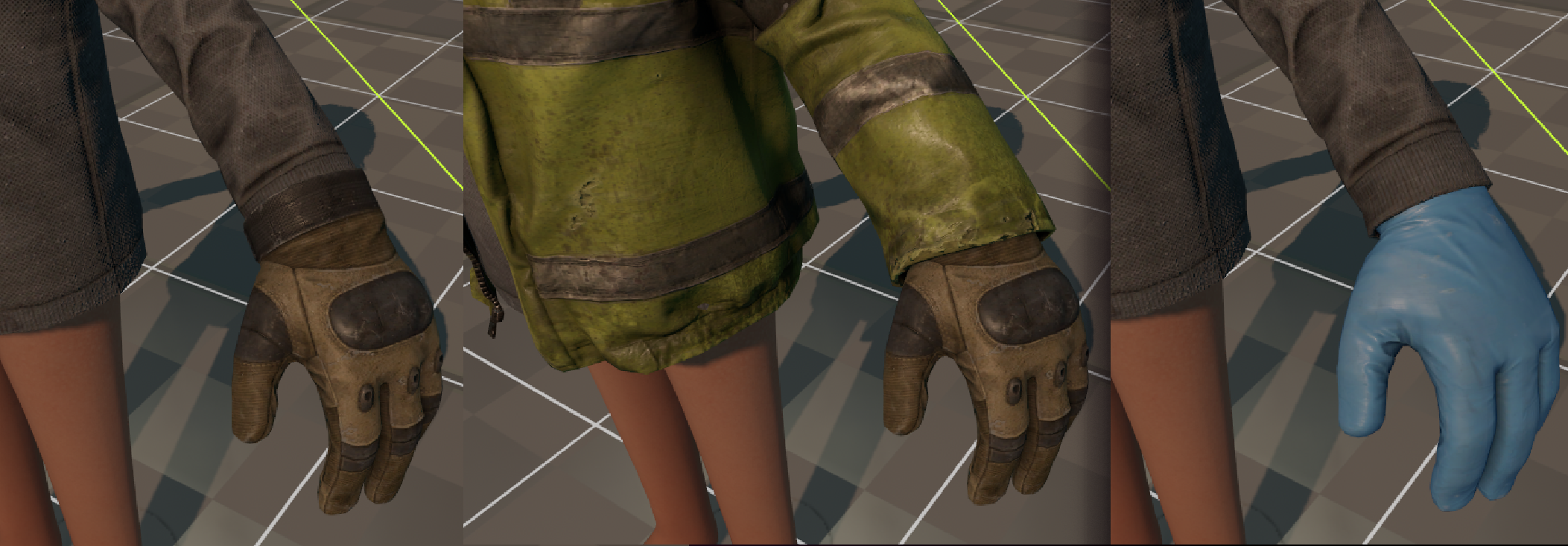

Gloves should sit over or under the Layer 1 clothing. They should never be any larger or clip with the Layer 2 Jackets, for the sake of preventing clipping.


Shoes Layering 👟

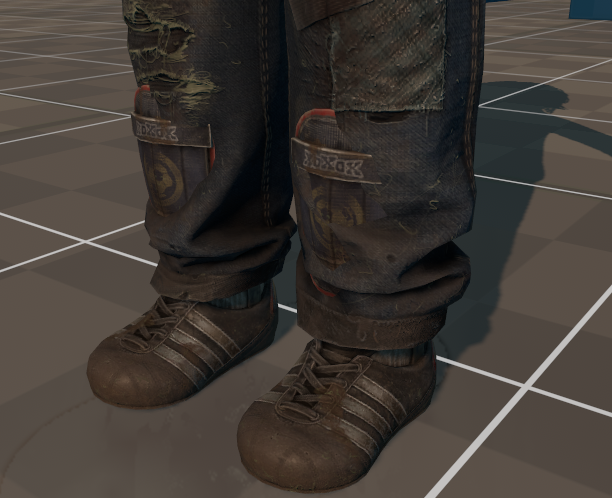

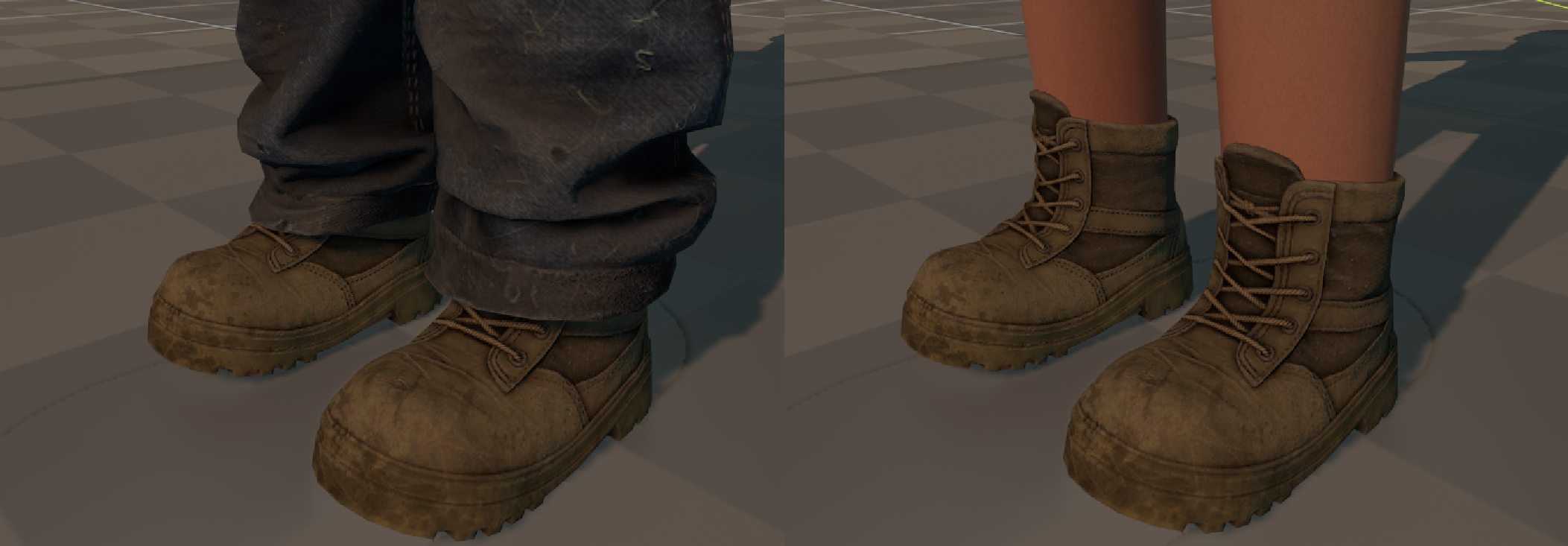

By default, most shoes should fit under all trousers. Which in most cases should be fine, keeping in mind to keep the trousers relatively wide, leaving for enough space for the shoes.

Though in some cases such as the football_shoes which have shinpads, reaching further up the leg, clipping is inevitable.

Considering the use-cases of each clothing item, users will more likely use the football_shorts which fit.

Clipping is inevitable, just keep a close eye on your silhouette of your assets and clipping shouldn't be too egregious.


Full-Body Outfits

Full-body outfits can hide the Human bodygroups and replace the visible character while still using .clothing items and the same clothing logic.

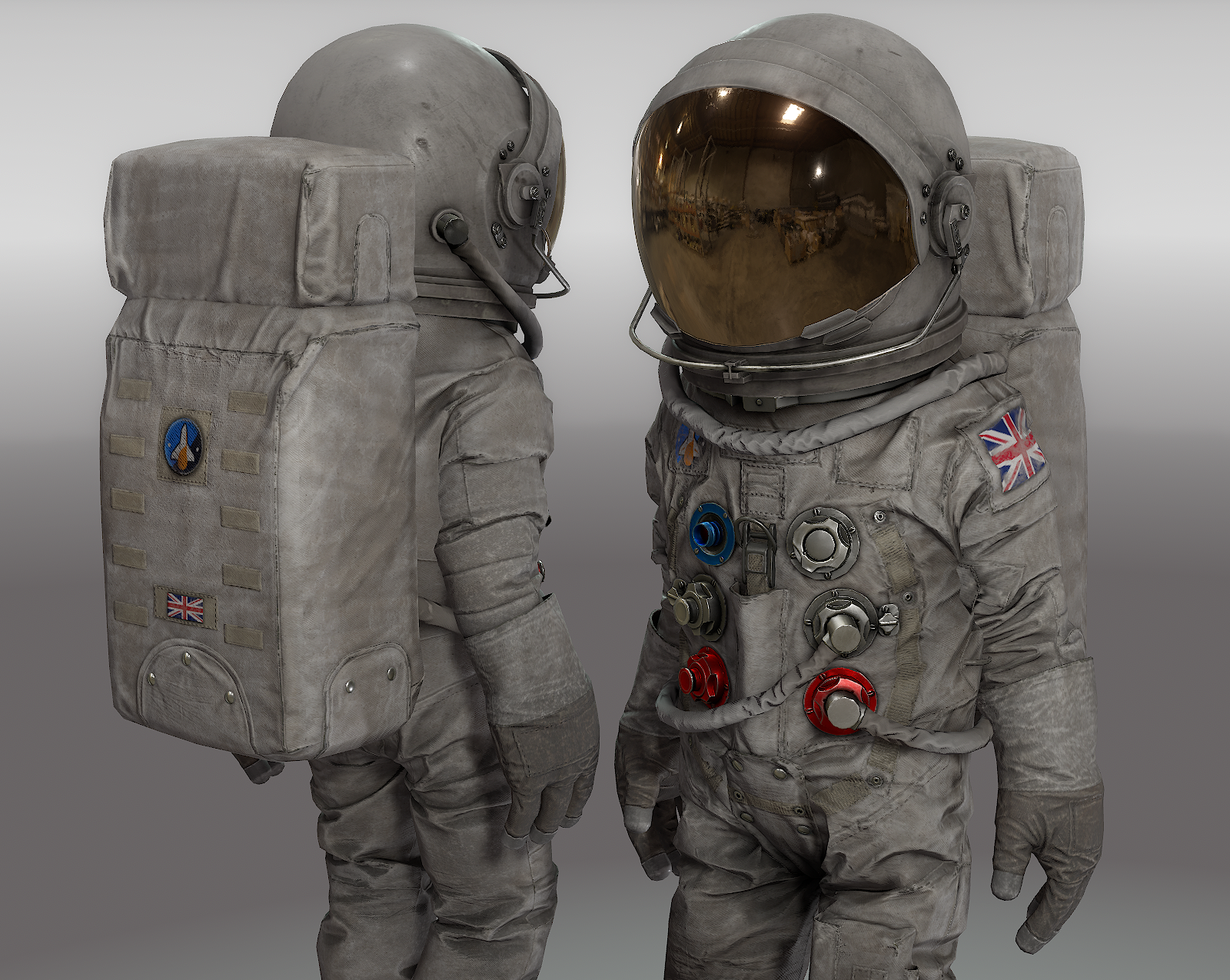

Full-Body Outfits are unique compared to the standard clothing and their layering system; they are bespoke and cover a majority or all of the body and would not fit with most clothing.

Context is Key

For outfits like the Pirate_Outfit, it is a unique asset with a defined use-case, we treat it as it's own full outfit piece rather than breaking it up into modular layered pieces.

Another example is the Sci-fi Armour, it covers the whole whole body and has a specific use-case, so would not need to mix or mash with other clothing assets, plus there's no good use-case for a sci-fi armoured character to wear a raincoat.

For Full-Body Outfits that completely fill the character, the clothing takes up both Layer 1 and Layer 2, since it filling both spaces.

You definitely want to distinguish: is your clothing a modular / layer friendly asset, or if it's a unique full body outfit that isn't going to fitting under or over other clothing pieces.
