Painter

Fill & Stroke

Fill paints the inside of a shape. Stroke paints along its edge. Both are properties on the painter; set them and every shape you draw afterwards uses them.

painter.Fill = Color.Orange;
painter.Stroke = Stroke.Solid( Color.White, 2 );
painter.Circle( center, 40 );

painter.Stroke = Stroke.None;
painter.Circle( center + new Vector2( 100, 0 ), 40 );  // fill only

Both default to none, so a fresh painter draws nothing until you set one of them.

Fills

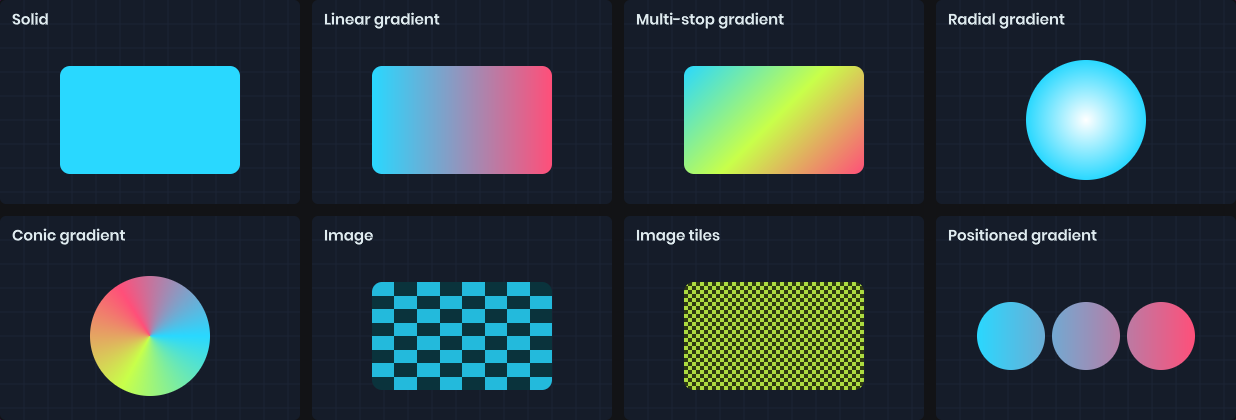

Gradient and image fills

A fill is a solid color, a gradient or an image. Colors convert implicitly.

painter.Fill = Color.Red;
painter.Fill = Fill.Solid( Color.Red.WithAlpha( 0.5f ) );
painter.Fill = Fill.None;

Gradients

Simple two-color gradients stretch across the bounds of each shape you draw.

painter.Fill = Fill.LinearGradient( Color.Cyan, Color.Magenta );        // left to right
painter.Fill = Fill.LinearGradient( Color.Cyan, Color.Magenta, 90 );    // top to bottom
painter.Fill = Fill.RadialGradient( Color.White, Color.Transparent );   // center to edge
painter.Fill = Fill.ConicGradient( Color.Red, Color.Blue );             // sweeps around the center

For more than two colors, build the gradient from stops. Offsets go from 0 to 1, and two stops at the same offset make a hard edge.

painter.Fill = Fill.LinearGradient( 45 )
	.WithStop( 0, Color.Red )
	.WithStop( 0.5f, Color.Yellow )
	.WithStop( 1, Color.Green );

Gradients can also be positioned in drawing coordinates instead of stretching to the shape. This is useful when several shapes should share one gradient.

painter.Fill = Fill.LinearGradient( new Vector2( 0, 0 ), new Vector2( 300, 0 ), Color.Cyan, Color.Magenta );
painter.Fill = Fill.RadialGradient( center, center + new Vector2( 50, 0 ), Color.White, Color.Black );

Images

Fill.Image tiles or stretches a texture inside the shape. By default it stretches to the shape's bounds.

painter.Fill = texture;                                   // stretched
painter.Fill = Fill.Image( texture, tint: Color.Red );
painter.Fill = Fill.Image( texture, width: 64, repeat: BackgroundRepeat.Repeat );  // 64px tiles, height keeps the aspect ratio
painter.Fill = Fill.Image( texture, width: 64, height: 64, offsetX: 16 );
painter.Fill = Fill.Image( texture ).WithRotation( 45 );

Sizes and offsets are pixels, or a Length.Percent of the shape.

Strokes

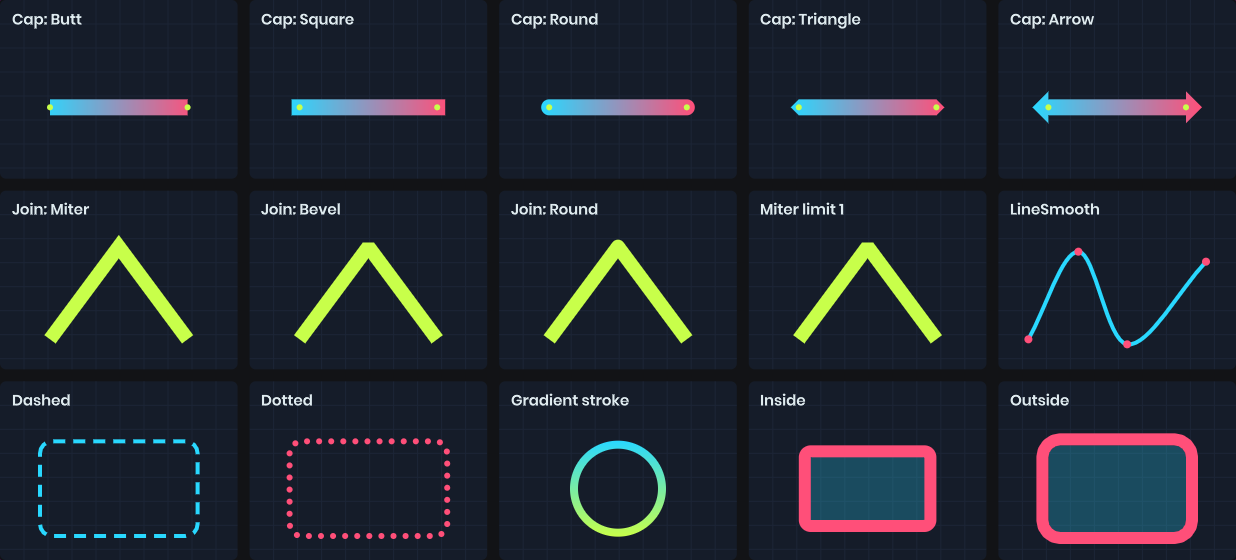

Stroke caps and joins

A stroke has a fill, a width, and a style. The fill can be anything a shape fill can be, including gradients and images.

painter.Stroke = Stroke.Solid( Color.White, 4 );
painter.Stroke = Stroke.Dashed( Color.White, 4, dashLength: 12, gap: 6 );
painter.Stroke = Stroke.Dotted( Color.White, 4, gap: 4 );
painter.Stroke = Stroke.Solid( Fill.LinearGradient( Color.Cyan, Color.Magenta ), 4 );
painter.Stroke = Stroke.None;

Animate the Offset of a dashed stroke to make it march along the path:

painter.Stroke = Stroke.Dashed( Color.White, 2, 8, 6, offset: Time.Now * 20 );

Caps and joins

Cap controls how open lines and dashes end. Join controls how corners meet.

painter.Stroke = Stroke.Solid( Color.White, 8 ).WithCap( Stroke.LineCap.Round );
painter.Stroke = Stroke.Solid( Color.White, 8 ) with { Join = Stroke.LineJoin.Bevel };

Cap	Description
`Butt`	Ends exactly at the point. The default.
`Square`	Extends half the stroke width past the point.
`Round`	A semicircle past the point.
`Triangle`	A pointed tip.
`Arrow`	A flared arrowhead.

Join	Description
`Miter`	Sharp corners, falling back to bevel beyond `MiterLimit`.
`Bevel`	Cuts the corner off.
`Round`	Rounds the corner. The default.

Alignment

On closed shapes the stroke is centered on the edge by default, so half of it overlaps the fill. You can move it fully inside or outside.

painter.Stroke = Stroke.Solid( Color.White, 4 ).WithAlignment( Stroke.StrokeAlignment.Inside );

Open paths like lines and arcs are always centered.

Outlines and shadows

Outline strokes around a rectangle without filling it, offset inward or outward. RectShadow draws a blurred shadow. Both are covered in Shapes.
