Attributes and Variables

What's an attribute

Attributes are the bridge to pass information around the CPU to the GPU, like Variables, Textures or entire Buffers.

To declare a constant to be exposed to C# you simply append < Attribute("Foo"); >; to that variable, like for example:

• bool NoiseEnabled < Attribute("NoiseEnabled"); >;
• float4 NoiseScale < Attribute("NoiseScale"); >;
• float4x4 BoxTransform < Attribute("BoxTransform"); >;
• Texture2D NoiseTexture < Attribute("NoiseTexture"); >;

This can then be set from C# side with Attributes.Set( "Name", variable );

Material Editor Integration

The Material Editor provides a graphical interface to adjust and control attributes defined in your shaders, By setting a Default[1..4]() value it will make it show up on the editor.

Certain attributes can have custom UI behaviors. For instance, UiType(Color) turns a float3 into a color picker. Other UI hints can be used to provide default values and ranges.

float3 TintColor < UiType(Color); Default3(1.0, 1.0, 1.0) >;

Reference

The following attributes are supported for constants:

Default(arg1) or Default1(arg1) Defines a variable default1 with the value .

Default2(arg1, arg2) Defines a float2/int2 with values { arg1, arg2 }.

Default3(arg1, arg2, arg3) Defines a float3/int3 with default values { arg1, arg2, arg3 }.

Default4(arg1, arg2, arg3, arg4) Defines a float4 with values { arg1, arg2, arg3, arg4 }.

Range( arg ) - Limit the UI to this range

Range2( arg, arg2 ) - Limits the UI of a float2/int2 to this range

Range3( arg, arg2, arg3 ) - Limits the UI of a float2/int2 to this range

Range4( arg, arg2, arg3, arg4 ) - Limits the UI of a float2/int2 to this range

UIType( type ) - Explicitly set which UI type to use for this variable

• Slider
• Color
• CheckBox

DefaultFile( arg ) - Defaults to this file if none is specified, for Textures

Textures

You can define an image to use on the material editor UI as follows:

CreateInputTexture2D(
    Name,
    ColorSpace,           // Color space: Linear or SRGB
    Precision,            // Precision per channel (e.g. 8 for 8-bit)
    Format,               // Format (e.g., DXT5, BC7)
    "Suffix",             // File suffix to filter in the UI
    "Group,1/10",         // UI group and ordering
    Default(0.5)          // Default value if none is provided
);

For example, this will create an "AlbedoImage" that can be exposed to the texture for compiling, the UI will filter for images that end with _albedo suffix:

CreateInputTexture2D( AlbedoImage, Linear, 8, "", "_albedo", "Material,10/30", Default( 0.5 ) );

To expose the compiled texture from UI into a Texture2D you can use the following:

Texture2D Albedo < Channel( RGBA, Box( AlbedoImage ) ); >;

This compiles an image into a texture using box filtering for mipmaps.

Advanced Channel Usage

You can pack channels of multiple images into a single texture specifying which channel the image will be sampled from

Texture2D RMA < Channel( R, Box( Roughness ), Linear );
                Channel( G, Box( Metalness ), Linear );
                Channel( B, Box( Occlusion ), Linear );
                Channel( A, Box( BlendMask ), Linear ); >;

Mip Generators

Second argument in Channel() macro is the mip generation method. Most common one is Box, which simply creates mips with box filtering. This is what you should use most of the time anyway. Here is a list of other commonly used methods:

Mipmap Method	Description
Box( TexA )	Generate mips with simple box filtering
PreserveCoverage( TexA )	Preserves opacity coverage for each mip, nice for transparent textures that must maintain detail on every mip level
AlphaWeighted( Color, Opacity )	Computes special mips for color maps by weighing the opacity texture. Lower mips "extrude" the color map based on opacity mask, which eliminates some issues with texture accuracy at lower mips. Takes two textures.

And there is also a number of other mip generators which are listed here just for the reference.

Mipmap Method	Description
None( TexA )	Don't generate mips for this texture
MultiplyBox( TexA, TexB )	Multiplies two texture inputs together and then generates mips using box filtering
MultiplyNoMip( TexA, TexB )	Same as Multiply, but won't generate any mips
HemiOctNormal( TexA )	Takes regular RGB tangent normal map and then applies hemispheric octahedron normal map encoding which will be stored into green and alpha. If you don't have these channels selected in Channel macro, then it will not work correctly
HemiOctIsoRoughness_RG_B( TexA )	...
HemiOctAnisoRoughness_RG_BA( TexA )	...
AnisoRoughness_RG( TexA )	...
HemiOctAnisoRoughness( Normal, Roughness )	...
AnisoNormal( TexA )	...
AnisoNormalRoughness( Normal, Roughness )	...
Nice( TexA )	Pretty close to box filtering, but mips are sharper
AutoLevels( TexA )	Generates mips using box filtering and then applies autolevel color adjustments, think of it like Photoshop effect where it automatically tries to balance out the color range
BoxInverse( TexA )	Generate mips with simple box filtering, but the result texture is inverted
BoxN( TexA )	Where N = number of max mips. So if you do Box2( Texture ), you will have only two mip levels. Uses box filtering.
WrapGaussian( TexA )	Mips with gaussian blur
HeightCombine( HeightA, HeightB )	Generates mips and combines two heightmaps together

Some Mips Previews

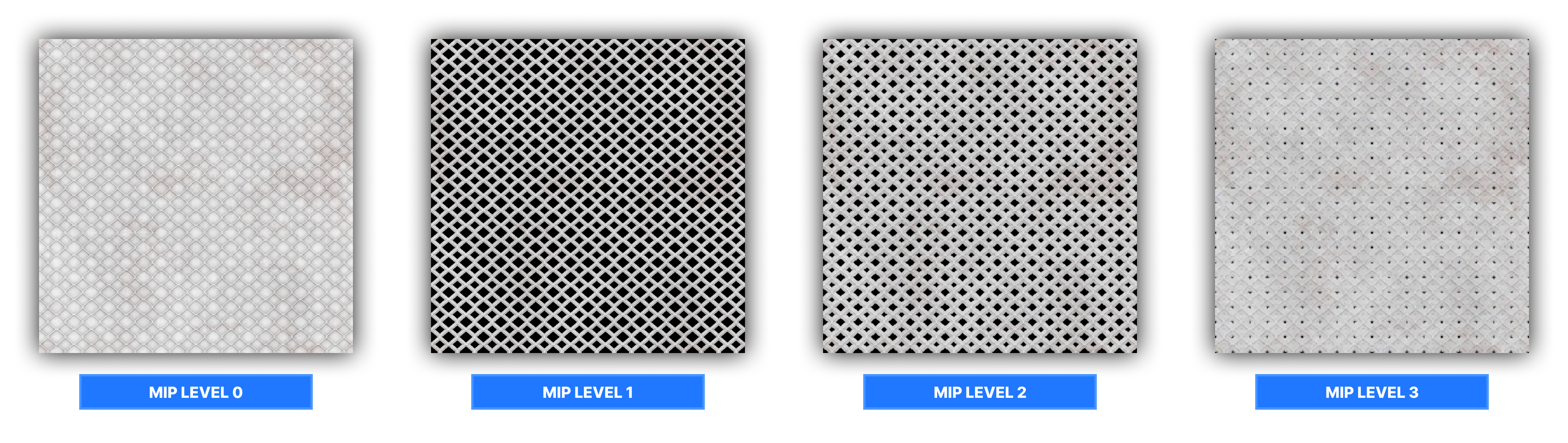

• ALPHA WEIGHTED: RGB Color map

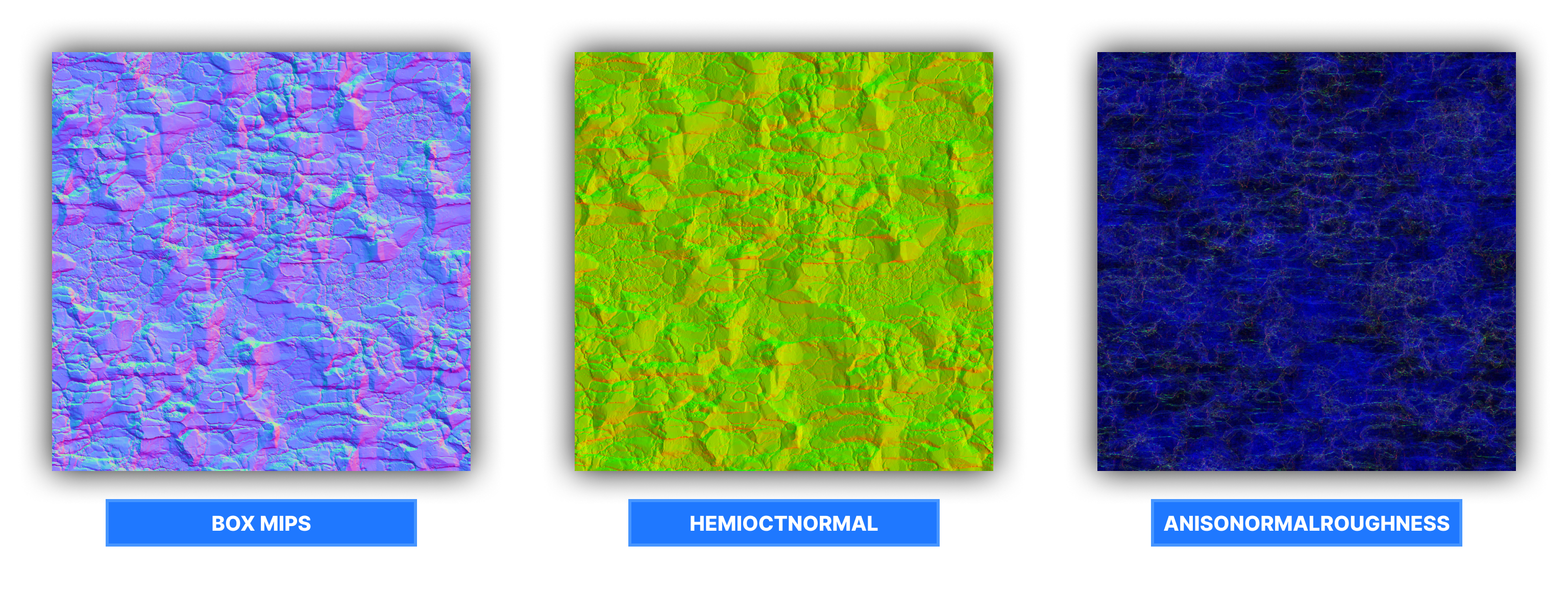

• VARIOUS NORMAL PROCESSING METHODS: Box, HemiOctNormal (Green & Alpha), AnisoNormalRoughness

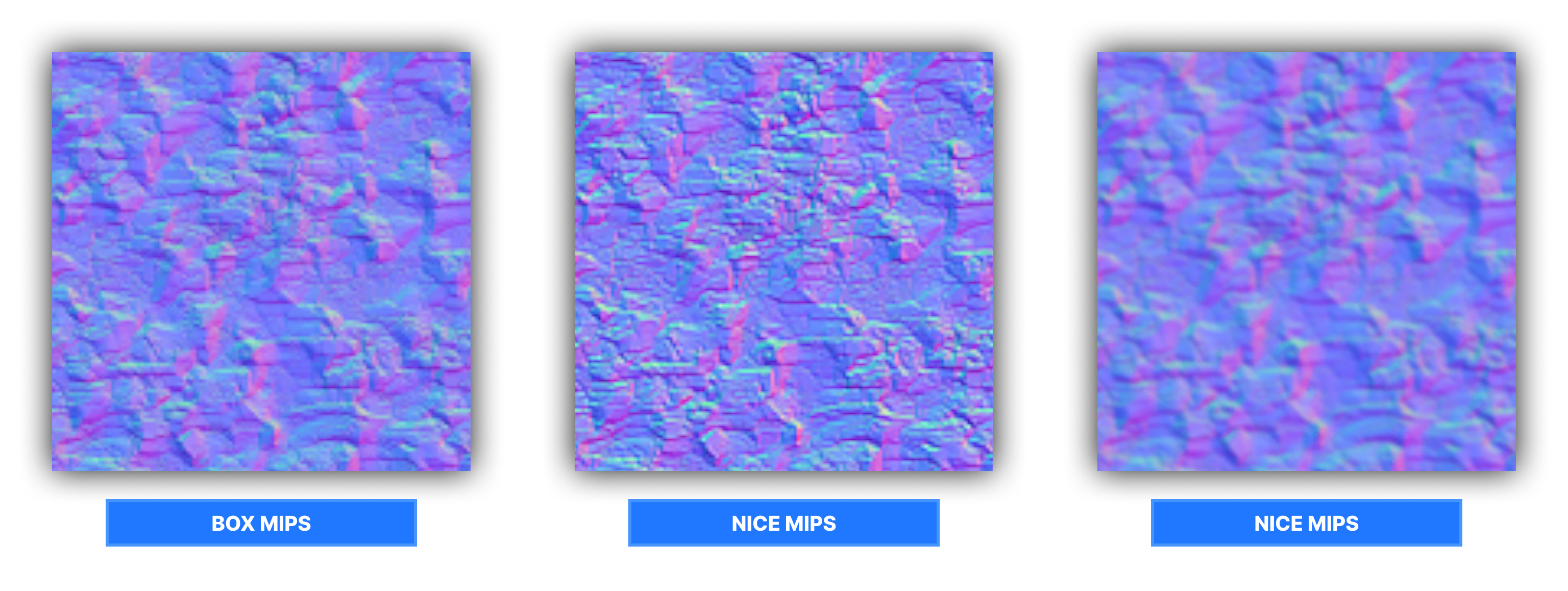

• BOX, NICE AND WRAPGAUSSIAN


Shader Attributes

In some shaders you may find such things as BoolAttribute and TextureAttribute. This is special attribute data which is read by engine for various rendering/utility purposes. In most cases you do not need to worry about them, but they are still listed here for the reference in case you ever wonder what are they doing in shader source code.

Bool Attributes

Bool Attribute	Description
translucent	Marks material as translucent, disables shadows, required for proper transparency. Can quickly access this attribute in C# using Flags.IsTranslucent
alphatest	Indicates that shader has alpha test enabled. Can quickly access this flag in C# using Flags.IsAlphaTest
sky	Indicates that this shader represents a skybox. Can quickly access this flag in C# using Flags.IsSky
SupportsMappingDimensions	If set to true, Material Editor will add settings for world mapping in "Attributes" tab. May be useful if you are using Hammer.
bWantsFBCopyTexture	Indicates that scene object needs a copy of frame buffer texture. Must be set to true if you want to read frame buffer texture in your shader.
NoZPrepass	If true, objects with your shader will opt out of Z prepass
DoNotCastShadows	This should disable shadow rendering on given material, but I don't know if this still works. TODO

Texture Attributes

Unless you plan to build your maps with Hammer and bake lightmaps, most of these texture attributes will be useless for you. It may be handy to use RepresentativeTexture for now though.

Texture Attribute	Description
RepresentativeTexture	This is used to display a 'representative' texture in number of tools, for example fast texturing tool. It will be displayed in tools when working with a material that uses your shader.
LightSim_DiffuseAlbedoTexture	Represents the albedo/diffuse texture for light baking in Hammer
LightSim_Opacity_A	Represents the opacity mask texture for light baking in Hammer
LightSim_SelfIllumMaskTexture	Represents the emissive texture for light baking in Hammer

Float Attributes

You can assign float and float3 attributes from your code using FloatAttribute and Float3Attribute accordingly. Just like with texture attributes, most of them are used for the Hammer light baking - so you will not find any of these useful unless you plan to build & bake light maps in Hammer.

Float Attribute	Description
Float LightSim_SelfIllumScale	Sets the intensity of emissive map for light baker in Hammer
Float3 LightSim_SelfIllumTint	Sets the tint color of emissive map for light baker in Hammer

Usage

These attributes are primarily read by native C++ engine, however in s&box you can also read the values using Flags in Material class, using GetInt and GetFloat:

BoolAttribute( SomeValueAttributeFromShader, false );
FloatAttribute( SomeFloatAttributeFromShader, 34.5f );

var myValue = material.Flags.GetInt( "SomeValueAttributeFromShader" );
var myFloat = material.Flags.GetFloat( "SomeFloatAttributeFromShader" );

GPU Buffers

If you want to send a lot of information at once you can use Constant Buffers or Structured Buffers:

private struct Constants
{
    public Vector4 Foo;
    public Vector4 Bar;
}

private Rendering.CommandList ConstantsCommandList()
{
    Rendering.CommandList commands = new("Example Commmand List");

    var constants = new Constants();

    constants.Foo = new Vector4( 0.0f, 1.0f, 2.0f, 3.0f );
    constants.Bar = new Vector4( 4.0f, 5.0f, 6.0f, 7.0f );

    commands.SetConstantBuffer( "Constants", constants );

    return commands;
}

And in the shader it can just be defined as mirrored on C#, for Constant Buffers the attribute binding for it's name is already implicitly set.

cbuffer Constants
{
    float4 Foo;
    float4 Bar;
}

Attributes on SceneObjects

You can set attributes of a specific SceneObject, this will affect the materials that are being used on that object when rendering, it does not need to be in a render block.

	void UpdateObject()
	{
		if ( !_sceneObject.IsValid() )
			return;

		_sceneObject.Attributes.SetCombo( "D_COMBO", 1 );
		_sceneObject.Attributes.Set( "Foo", 1.0f );
		_sceneObject.Attributes.Set( "Bar", new Vector4( 1.0f, 2.0f, 3.0f, 4.0f ) );
		_sceneObject.Attributes.Set( "NoiseTexture", NoiseTexture );
	}

Attributes on Command Lists

You can use attributes on the entire render context or the rest of the pipeline when you set them on a Command List.

protected override void OnEnabled()
{
    Camera.AddCommandList( ExampleCommandList(), Rendering.Stage.AfterDepthPrepass );
}

private Rendering.CommandList ExampleCommandList()
{
    Rendering.CommandList commands = new("Example Commmand List");

    var compute = new ComputeShader( "example_cs" );

    commands.Set( "NoiseScale", NoiseScale );
    commands.Set( "NoiseTexture", NoiseTexture );

	commands.DispatchCompute( compute, ExampleRenderTarget.Size );

    // Sets attribute for anything after Rendering.Stage.AfterDepthPrepass
    // until end of frame for this view from the result of the compute operation
    commands.SetGlobal( "Result", ExampleRenderTarget );

    return commands;
}
