Procedural Effects

procedural.hlsl is a file that contains a bunch of helper functions: procedural noises, shapes, and some UV utilities. They can be used for any purpose, just get any UV coordinates (like i.vTextureCoords.xy, i.vPositionSs.xy or anything else) and adjust any additional parameters to get desired effect.

Fuzzy Noise

Very simple and cheap type of "TV static" noise.

• float: FuzzyNoise( float2 UV, float2 Dot = float2( 12.9898f, 78.233f ) )

• • Dot is optional. Inside the noise function, it calculates the dot product between these two values, which is used as a seed for the final noise value. You can use any values in here, like g_flTime or anything else to control/animate the noise.

• float2: FuzzyNoise2D( float2 UV )

• • Produces same noise, except it stores two random fuzzy noise values in a float2 vector. You cannot control the dot value in this one.

• float2: FuzzyNoiseWithOffset( float2 UV, float Offset )

• • Generated the same noise as FuzzyNoise2D, except you can control the final noise value by providing an offset value, which can look smoother/less harsh to your eye if you animate it.

Value Noise

It's similar to fuzzy noise, but it is smoother and can react to different UV scales, which is something that you can't really do properly with fuzzy noise.

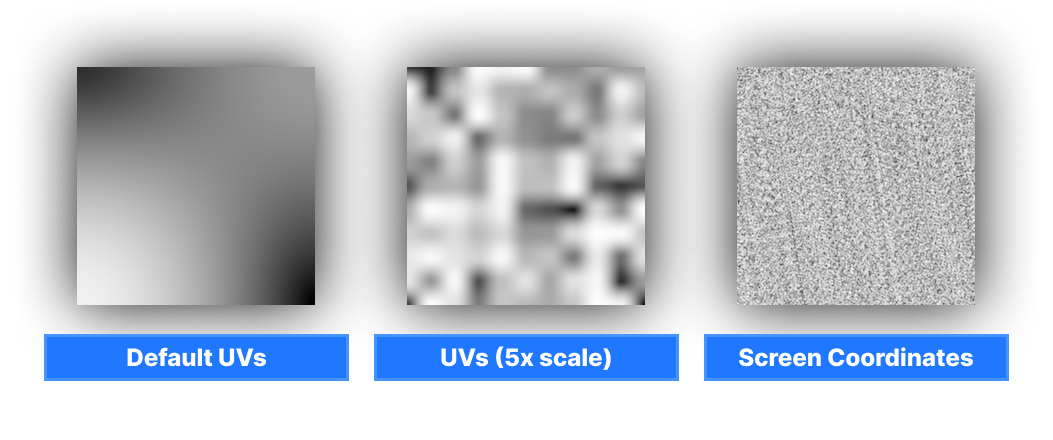

• float: ValueNoise( float2 UV )

Simplex 2D

Generates simplex noise. Unlike other noises above, this one returns the value in (-1 to 1) range.

• float: Simplex2D( float2 UV )

Voronoi Noise

Generates voronoi noise.

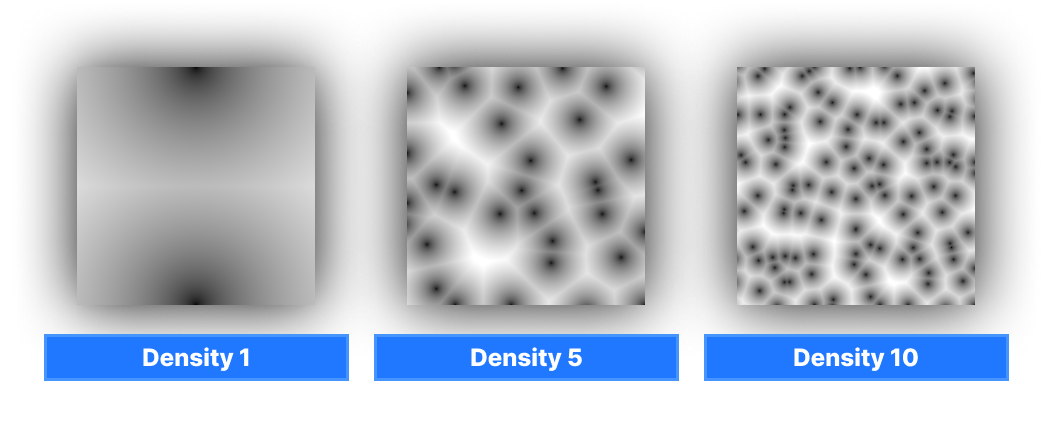

• float: VoronoiNoise( float2 UV, float AngleOffset, float Density )
• • AngleOffset controls the positioning of cells in this noise. Can be animated with g_flTime.
• • Density controls the "scale" of final noise texture.

Procedural Shapes

This file also comes with a number of procedural pattern functions.

Checkerboard

Generates simple black-and-white checkerboard pattern and properly anti-aliased.

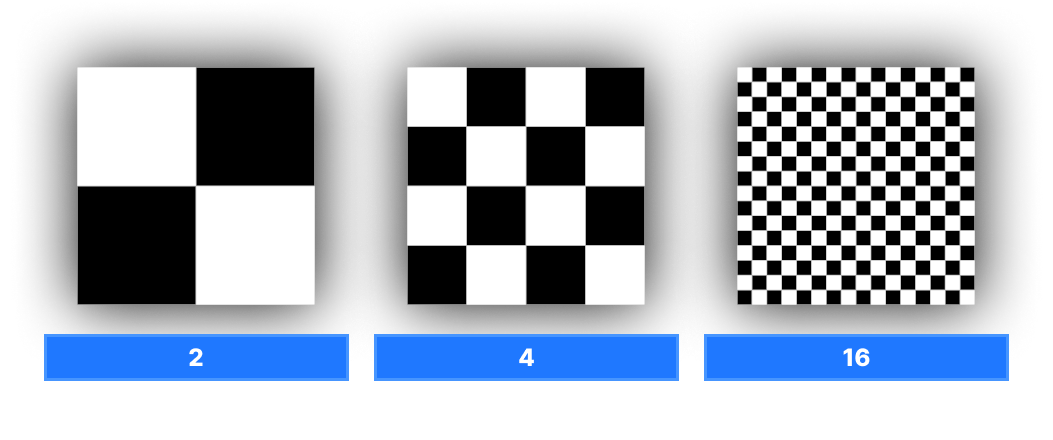

• float: Checkboard( float2 UV, float Frequency )
• • Frequency controls the amount of checkerboards on UV.

Circle

Draws a circle on UV, aligned at center of UV.

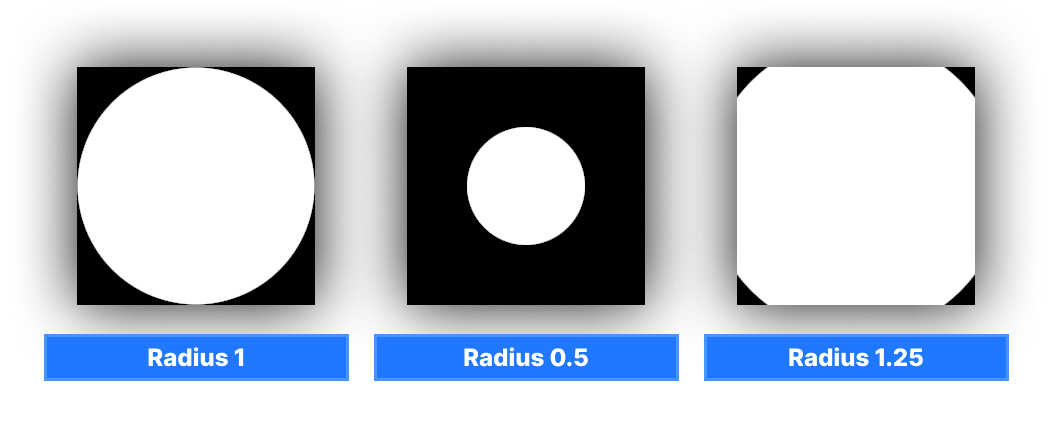

• float: Circle( float2 UV, float Size )
• • Size controls the size of this circle. 1 = covers whole UV, 0 = invisible (too small)

Ellipse

Draws an ellipse on UV, aligned at center of UV. Can adjust the size on both axis.

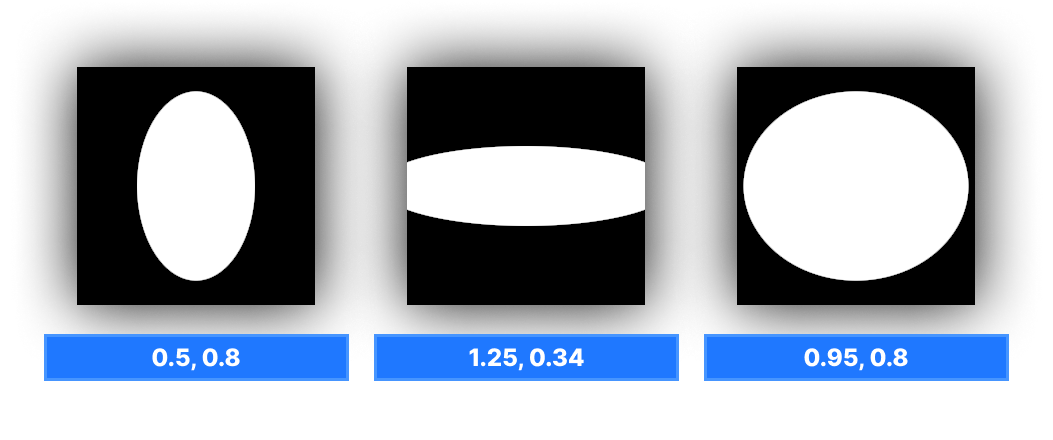

• float: Ellipse( float2 UV, float2 Size )
• • Size takes the float2 vector to control the size of this ellipse on both dimensions.

Square

Draws a square on UV, aligned at center of UV.

• float: Square( float2 UV, float Size )
• • Size controls the size of this square. 1 = covers whole UV, 0 = invisible (too small)

Rectangle

Draws a rectangle on UV, aligned at center of UV. Can adjust the size on both axis.

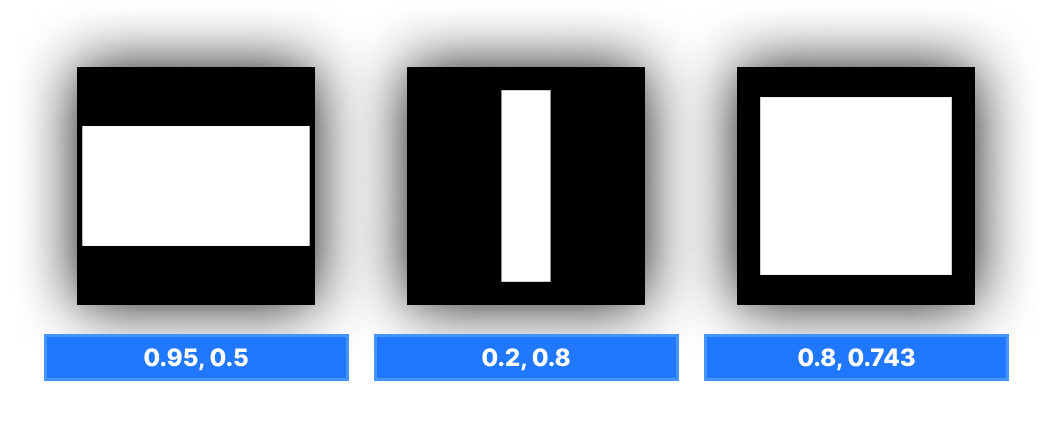

• float: Rect( float2 UV, float2 Size )
• • Size takes the float2 vector to control the size of this rectangle on both dimensions.

UV Helpers

There are a few UV helpers as well.

Tile

• float2: TileUV( float2 UV, float2 Tile )
• • Tile takes the float2 vector to control how many times the given UV must be tiled on both axis

This helper simply multiples UV by Tile value.

Offset

• float2: OffsetUV( float2 UV, float2 Amount )
• • Amount takes the float2 vector to control the direction & amount of UV offset.

This helper simply does UV + Amount.

Tile and Offset

Handles both tiling and offseting at the same time.

• float2: TileAndOffsetUV( float2 UV, float2 Tile, float2 Offset )
• • Tile takes the float2 vector to control how many times the given UV must be tiled on both axis
• • Amount takes the float2 vector to control the direction & amount of UV offset.

Polar Coordinates

Convers standard UVs to polar coordinates.

• float2: PolarCoordinates( float2 UV, float RadiusScale, float LengthScale )

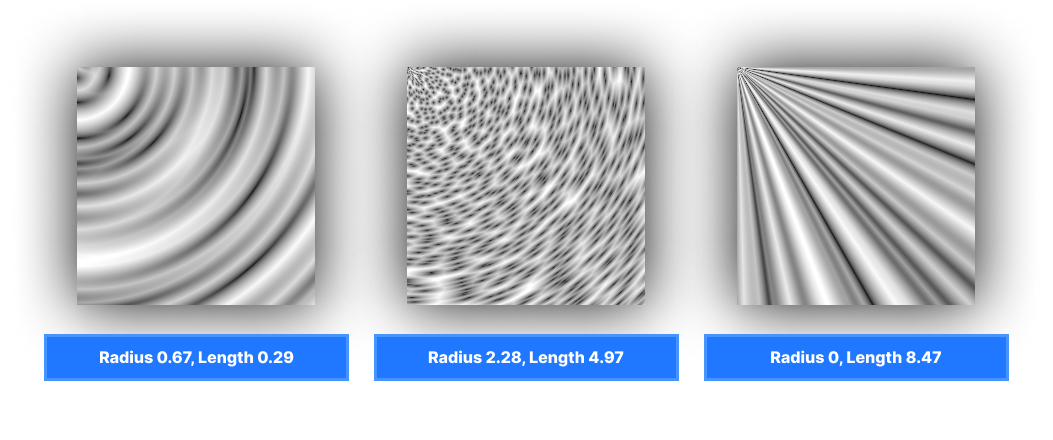

Here's a bunch of examples where voronoi noise is sampled with polar coordinates:
